Cub Disc Brake Conversion Kit Cub 800x4 Conversion Kit Cub Disc Brake Conversion Kit Grove Disc Brake Conversion Kit

Complete Kit Only $999.00
Eliminate traditional 800x4 Brake Problems!
     • No more expander tube hassles
     • No more soft brake pedal
     • No more weak and ineffective braking

New FAA-STC Approved Disc Brake Conversion
      • Maintain the classic cub look
      • Improved Braking and Handling
      • Use your existing wheels, tires and tubes
      • Use your existing master cylinder and brake lines
      • Easy installation—all parts & special tools included
      • Uses standard 66-106 brake pads

Numerous aircraft, including most of the earlier Pipers, are fitted with B.F. Goodrich/Hayes Models 840 and 841 four inch wheels.  Replacement parts for these are difficult to obtain, particularly the P/N D22-43 expander tube, which has not been produced for many years.

In response to this, Grove Aircraft Landing Gear Systems Inc. has developed a standard aircraft-type brake disc and caliper system that solves the problem of difficult parts replacement, and results in a safer, more reliable system, with the added advantage of better braking and decreased maintenance.

This STC has been specifically designed to be easily adapted to aircraft in the field by a qualified Airframe Mechanic. The installation requires only standard hand and rivet tools. No modifications are required to be made on the gear leg, or any other part of the aircraft, other than the wheel assembly.

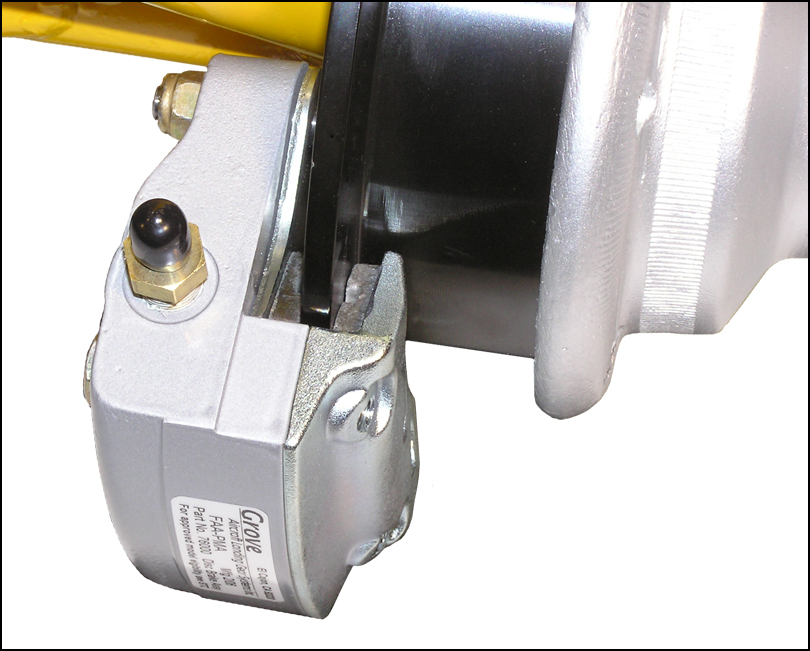

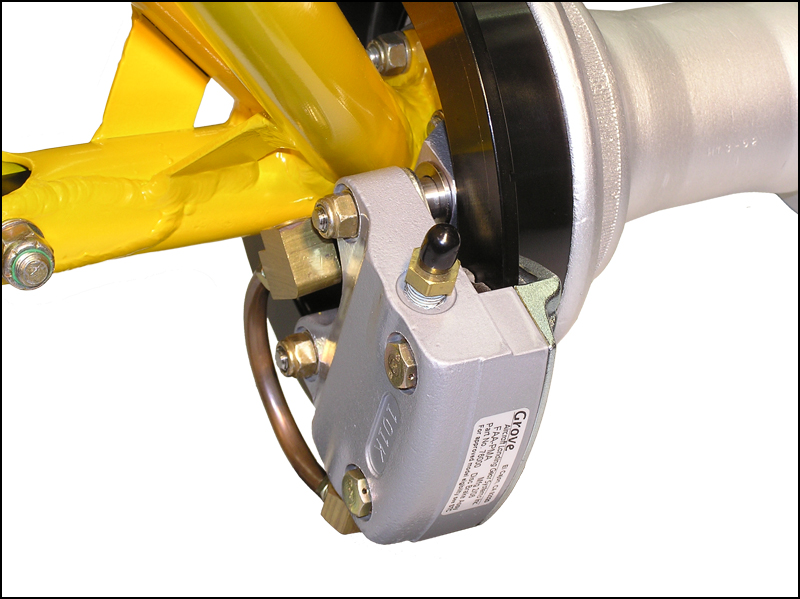

The main components of the retrofit include a brake disc, brake caliper and torque plate.  The existing Scott master cylinders provide adequate pressure and volume and need not be replaced.

This conversion has been installed and successfully flown on over a thousand aircraft..

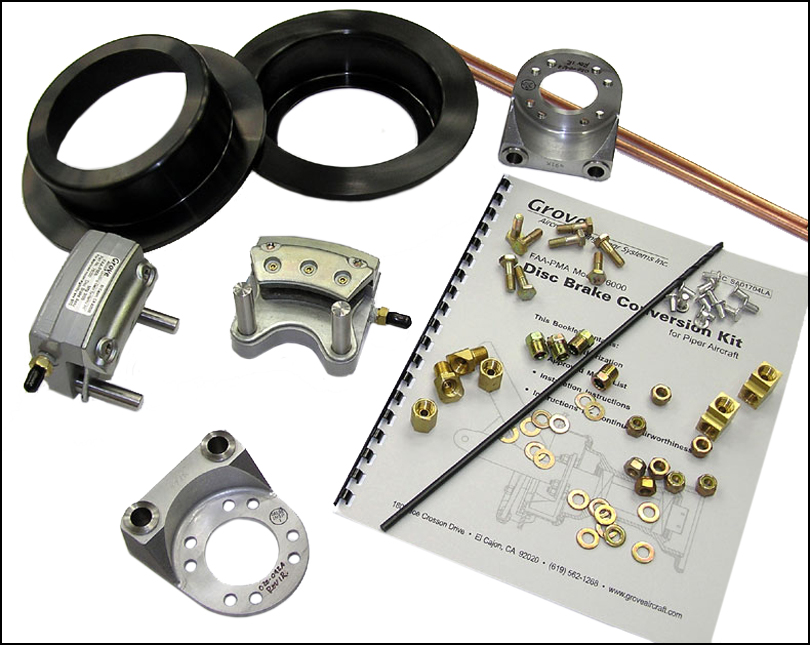

The STC includes all parts and special tools necessary for the installation, as well as FAA documentation. Click here to contact us to order, or for more information.

Part Number 76002   $999.00
Related Links
APPROVED
MODELS

J-3
J-4
J-5
PA-11
PA-12
PA-14
PA-15
PA-16
PA-17
PA-18
PA-19
PA-20

EXPANDED
MODEL LIST

If your Aircraft is not listed Click Here
