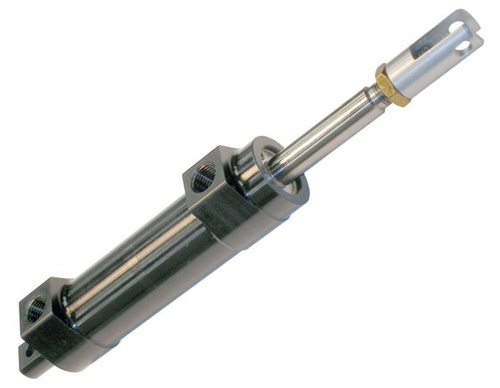

670 Series
Stroke = 1.4"
Available in 5/8" or 9/16" bore
Upper Attachment: Clevis or
Eye Bolt
Lower Attachment: Inline or

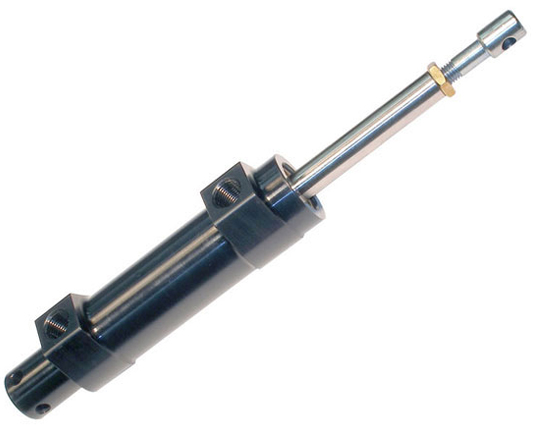

90° Offset 		671 Series
Stroke = 1.4"
Available in 5/8" or 9/16" bore
Upper Attachment: Clevis
or Eye Bolt
Lower Attachment: Cross Drilled		 672 Series
Stroke = 0.77"
Available in 5/8" or 9/16" bore
Upper Attachment: Clevis

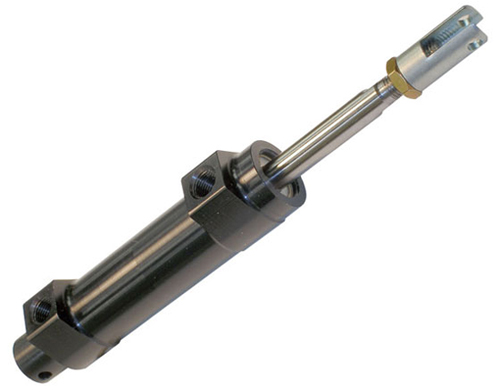

Lower Attachment: Cross Drilled		 673 Series
Stroke = 1.4"
Available in 5/8" or 9/16" bore
Upper Attachment: Clevis or
Eye Bolt
Lower Attachment:Right or Left Offset, Cross Drilled, Slotted 90°,

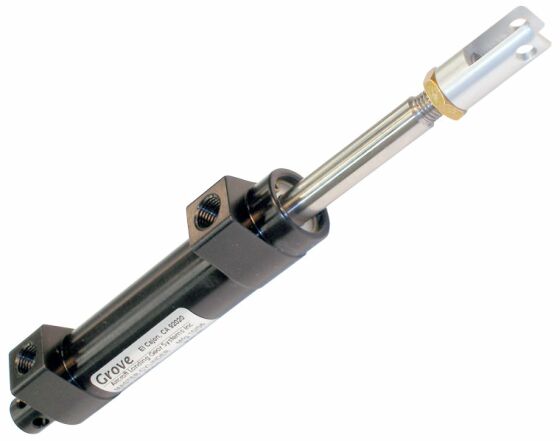

or Slotted Inline		 674 Series
Stroke = 1.4"
Available in 5/8" bore
Upper Attachment: Clevis
Lower Attachment: Cross Drilled
Grove large bore aircraft master cylinder grove 683 push type aircraft mster cylinder grove 684 push type aircraftmaster cylinder grove 697 push type aircraft master cylinder Grove push type aircraft master cylinder with sphereical bearings
678 Series
Stroke = 1.02"
Available in 7/8" or 1" bore
Upper Attachment: Clevis or
Eye Bolt
Lower Attachment: Inline or

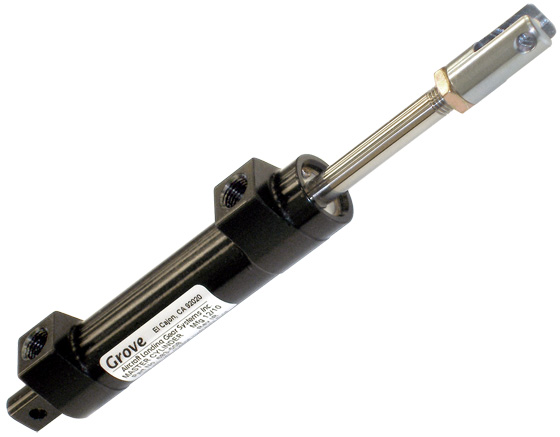

90° Offset		 683 Series
Stroke = 1.4"
Available in 1/2" bore
Upper Attachment: Clevis or
Eye Bolt
Lower Attachment: Inline,
90° Offset or Cross Drilled		 684 Series
Stroke = 1.6"
Available in 5/8" bore
Upper Attachment: Clevis or
Eye Bolt
Lower Attachment: Inline or
90° Offset

687 Series
Stroke = 1.55"
Available in 3/4" bore
Upper Attachment: Clevis
Lower Attachment: Inline or
90° Offset rectangle or round tab

688 Series
Stroke = 1.4"
Available in 5/8" or 9/16" bore
Sphereical Bearings eliminate side loads on installations with poor pedal geometry. Lower Attachment available Inline or 90° Offset
