Master Cylinders with Integral Reservoir Home > Master Cylinders > Reservoir Master Cylinders

Master cylinders with integral reservoir eliminates need for additional reservoir and related plumbing. Many styles to choose from.

Click on image for more infomation on each master cylinder series

 • Outlet Ports: 1/8" NPT
• Max Pressure = 1,200 psi
• For use with MIL-H-5606 Fluid

Grove aircraft master cylinder with reservoir

 Grove aircraft master cylinder with large reservoir aircraft master cylinder with intergral reservoir aircraft mster cylinder with reservoir and spherical bearings

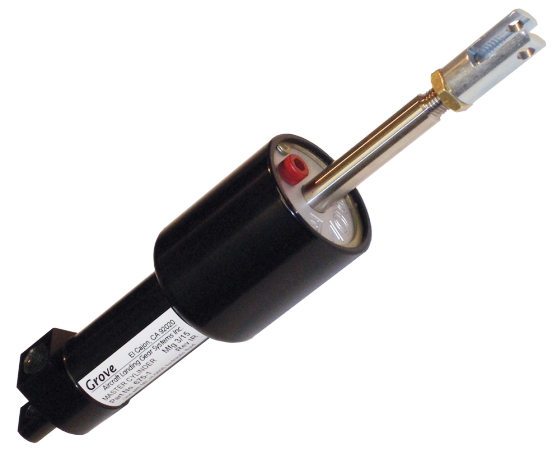

675 Series
Reservoir Volume = 2.0 cu-in
Stroke = 1.2"
Available in 5/8" & 9/16" bore
Upper Attachment: Clevis or Eye Bolt
Lower Attachment: Inline, Offset & Cross Drilled

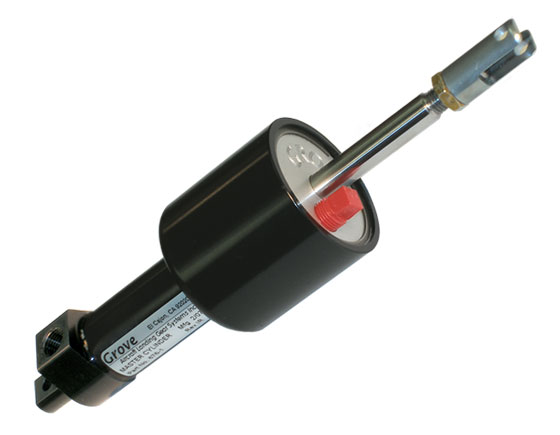

676 Series
Reservoir Volume = 3.05 cu-in
Stroke = 1.2"
Available in 5/8" & 9/16" bore
Upper Attachment: Clevis
Lower Attachment: Inline, 90° Offset & Cross Drilled

682 Series
Reservoir Volume = 1.83 cu-in
Stroke = 1.438"
Available in 5/8", 9/16" & 1/2" bore
Upper Attachment: Clevis
Lower Attachment: Inline, 90° Offset & Cross Drilled

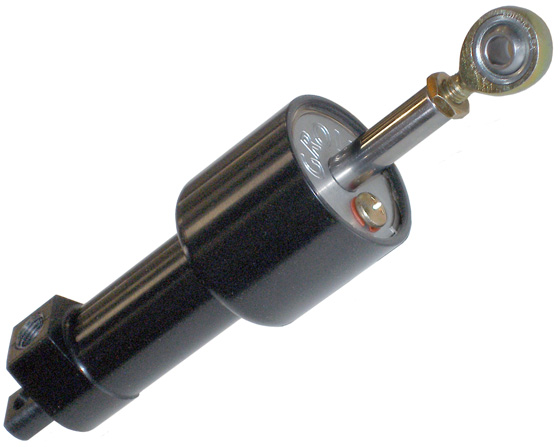

685 Series
Reservoir Volume = 1.44 cu-in
Stroke = 1.2"
Available in 5/8 bore
Upper Attachment: Clevis, Eye Bolt or Rod-end Bearing
Lower Attachment: Inline, Offset & Cross Drilled
