Grove Aircraft can provide a complete custom landing gear, ready to bolt on, designed for your individual airplane.  We have built landing gear for over 1,000 different types of aircraft. We can work from your drawings, or we will engineer a design that satisfies all your requirements.Just contact us for fast, friendly design assistance or submit your specifications by clicking here.
Axle Types: Please specify axle bolt hole pattern when ordering

     Type 1:  Typically used for 500x5 wheels
     Type 2:  Typically used for 600x6 wheels
     Type 3:  Used on Cub type landing gear
Acro Duster II
Acro Sport
Avid
Baby Lakes
Cassut
Cavalier
Christen Eagle
Corby Starlet
Fisher Celebrity
Fisher Horizon
Glasair
Kitfox
KR2
Lazer/Stephen Acro
Merlin
Midget Mustang
One Design
Pitts
Pulsar
RV-8
Skybolt
Smith MiniPlane
Sonerai
Starduster
Taylor Titch
VP-1
VP-2
Wag-A-Bond

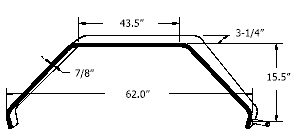

Zenith

Acro Sport I
Wheels
Axles
Hardware
Acro Sport Landing Gear Gross Weight: 1100 lbs.
Weight: 28.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1121-3 Price: $1,829

Acro Sport II
Wheels
Axles
Hardware
Acro Sport II Landing Gear Gross Weight: 1550 lbs.
Weight: 34.7 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1122-3 Price: $1,939

Avid Magnum T.D.
Wheels
Axles
Hardware
Avid Magnum  Landing Gear
Gross Weight: 1750 lbs.
Gear Weight: 34.6 lbs.
Material: 7075 T-6 Aluminum
Axle Bolt Hole Pattern: Type 2
P/N 1013-3A     Price: $2,629
Gun-Drilled
P/N 1013-3B     Price: $2629
Grooved Trailing Edge

AVID Magnum
Tri-Gear

Wheels
Axles
Hardware
Avid Magnum Tri-Gear Landing Gear
Gross Weight: 1750 lbs.
Gear Weight: 34.6 lbs.
Material: 7075 T-6 Aluminum
Axle Bolt Hole Pattern: Type 2
P/N 1014-3A     Price: $2,129
Gun-Drilled
P/N 1014-3B     Price: $2,129
Grooved Trailing Edge

Avid Mk 4 T.D.
Wheels
Axles
Hardware
Avid Mk 4 TD Landing Gear
Gross Weight: 1250 lbs.
( Also available for Models B & C with lower gross weight.)
Gear Weight: 32.0 lbs.
Material: 7075 T-6 Aluminum
Axle Bolt Hole Pattern: Type 1
P/N 1011-3A     Price: $,2,399
Gun-Drilled
P/N 1011-3B     Price: $2,399
Grooved Trailing Edge

Avid Mk 4
Wheels
Axles
Hardware
Avid M4 Landing Gear

Gross Weight: 1250 lbs.
(Also available for Models B & C with lower gross weight.)
Gear Weight: 32.0 lbs.
Material: 7075 T-6 Aluminum
P/N 1012-3A     Price: $1,979
Gun-Drilled
P/N 1012-3B     Price: $1,979
Grooved Trailing Edge


Baby Lakes
Wheels
Axles
Hardware
Baby Lakes Landing Gear Gross Weight: 850-900 lbs.
Weight: 16.2 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1091-3 Price: $1,419

Cassut
Wheels
Axles
Hardware
Cassut Landing Gear Gross Weight: 850 lbs.
Weight: 16.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
Optional Airfoil Shaping $150.00
P/N 1071-3   Price: $1,479

Cavalier
Wheels
Axles
Hardware
Cavalier Landing Gear Gross Weight: 1800 lbs.
Weight: 25.0 lbs./pr
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1151-1   Price: $1,629

Christen Eagle
(Stock)

Wheels
Axles
Hardware
Christen Eagle Landing Gear Gross Weight: 1600 lbs.
Weight: 27.4 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1042-3   Price: $1,829

Christen Eagle
(Heavy Gear)

Wheels
Axles
Hardware
Christian Eagle Heavy Duty Landing Gear Gross Weight: 1600 lbs.
Weight: 31.1 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1041-3   Price: $1,939

Corby Starlet
Wheels
Axles
Hardware
Corby Starlet Landing Gear Gross Weight: 650 lbs.
Weight:  12.0 lbs./pr
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1182-1   Price: $1,309

Corby Starlet
(One Piece)

Wheels
Axles
Hardware
Corby Starlet One Piece Landing Gear Gross Weight: 650-750 lbs.
Weight:  14.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1181-3   Price: $1,309

Fisher Celebrity
Wheels
Axles
Hardware
Fisher Celebrity Landing Gear Gross Weight: 1100 lbs.
Weight: 23.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Various
Optional Gundrill: $200.00
P/N 1046-3 Price: $1,479

Fisher Horizon 1
Wheels
Axles
Hardware
Fisher Horizon 1 Landing Gear Gross Weight: 640 lbs.
Weight:  14.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1102-3   Price: $1,209

Fisher Horizon 2
Wheels
Axles
Hardware
Fisher Horizon 2 Landing Gear Gross Weight: 1050 lbs.
Weight:  21.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1101-3   Price: $1,629

Glasair TD
Wheels
Axles
Hardware
Glasair TD Landing Gear

Aircraft Gross Weight: 2200 lbs.
Gear Weight:  28.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes radius edges
Includes Gundrilled Brake Line
P/N 1111-1   Price: $2,109






Glasair FT
Wheels
Axles
Hardware
Glasair FT Landing Gear Gross Weight: 2200 lbs.
Gear Weight:  28.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes radius edges
Mounts to existing attach points
Includes New Mounting Brackets
Includes Gundrilled Brake Line
P/N 1113-1   Price: $2,109

Kitfox Model 3 & 4
Wheels
Axles
Hardware
Installation Instructions
Kitfox Model 3 & 4 Landing Gear

Gross Weight: 1200 lbs.
Weight:  24.3 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes Gundrilled Brake Line
P/N 1021-3   Price: $1,995

Kitfox Series
5, 6 & 7

Wheels
Axles
Hardware
Kitfox Series 5, 6, 7 Landing Gear

Gross Weight: 1500 lbs.
Weight:  34.3 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes Gundrilled Brake Line
P/N 1022-3   Price: $1,879

KR2 (One Piece)
Wheels
Axles
Hardware
KR2 One Piece Landing Gear Gross Weight: 1050 lbs.
Weight:  21.6 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1171-3   Price: $1,459

KR2 (Two Piece
Spar Mounted

Wheels
Axles
Hardware
Gross Weight: 1050 lbs.
Weight:  15.0 lbs./pr
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1172-1   Price: $1,519

Lazer/
Stephens Acro

Wheels
Axles
Hardware
Lazer Landing Gear Gross Weight: 1250 lbs.
Weight:  25.4 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1051-3   Price: $1,829

Merlin GT
Wheels
Axles
Hardware
Merlin GT Landing Gear
Gross Weight: 1250 lbs.
Weight:  30.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
P/N 1213-3   Price: $1,869

Midget Mustang 1
(Two Piece)

Wheels
Axles
Hardware
Midget Mustang 1 Landing Gear Gross Weight: 950 lbs.
Gear Weight:  15.3 lbs./pr
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1161-1   Price: $1,539

Midget Mustang 2
(Two Piece)

Wheels
Axles
Hardware
Midget Mustang 2 Landing Gear Gross Weight: 1600 lbs.
Weight:  21.0 lbs./pr
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1162-1   Price: $1,799

One Design
Wheels
Axles
Hardware

One Design Landing Gear Gross Weight: 1200 lbs.
Weight: 21.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill: $200.00
P/N 1044-3 Price: $1,629

Pitts S1
Wheels
Axles
Hardware
Pitts S1 Landing Gear Gross Weight: 1050 lbs.
Weight:  21.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1031-3   Price: $1,629

Pitts S1-11B
Wheels
Axles
Hardware
Pitts S1-11B Landing Gear Gross Weight: 1500 lbs.
Weight:  32.9 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1032-3   Price: $1,939

Pitts S2S, S2A, S2B
Wheels
Axles
Hardware
Pitts S2s, S2A, S2B Landing Gear Gross Weight: 1650-1750 lbs.
Weight:  34.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1034-3   Price: $1,939

Pulsar III & XP
Wheels
Axles
Hardware
Pulsar III & XP Landing Gear Gross Weight: 1200 lbs.
Gear Weight:  24.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Includes Gundrilled Brake Line

One Piece Retrofit Kit
    P/N 1191-3  Price $1,699
Two Piece Retrofit Kit
    P/N 1192-1  Price $1,849

Skybolt
(4 Cylinder)

Wheels
Axles
Hardware
Skybolt 4 Cylinder Landing Gear Gross Weight:  1800 lbs.
Weight:  39.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1061-3   Price: $1,939

Skybolt
(6 Cylinder)

Wheels
Axles
Hardware
Skybolt 6 Cylinder Landing Gear Gross Weight:  2000 lbs.
Weight:  43.6 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1062-3   Price: $2,299

Smith Miniplane
Wheels
Axles
Hardware
Smith Miniplane Landing Gear Gross Weight: 1050 lbs.
Weight: 21.8 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill: $200.00
P/N 1045-3 Price: $1,629

Sonerai 1
Wheels
Axles
Hardware
Sonerai 1 Landing Gear Gross Weight:  700 lbs.
Weight:  15.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1141-3   Price: $1,349

Sonerai 2
Wheels
Axles
Hardware
Sonerai 2 Landing Gear Gross Weight:  950 lbs.
Weight:  20.8 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1142-3   Price: $1,509

Starduster II
Wheels
Axles
Hardware
Starduster II Landing Gear Gross Weight:  1950 lbs.
Weight:  46.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1081-3   Price: $2,169

Taylor Titch
Wheels
Axles
Hardware
Taylor Titch Landing Gear Gross Weight:  900 lbs.
Weight:  23.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1050-3   Price: $1,469

VP-1
(Cable Braced
Stock Gear)

Wheels
Axles
Hardware
VP-1 Cable Braced Landing Gear Gross Weight:  800 lbs.
Weight:  12.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Includes Lower Leaf Plates
Cables not included
P/N 1131-3   Price: $969

VP-1
(Free Standing
No Cables)

Wheels
Axles
Hardware
VP-1 Free Standing Landing Gear Gross Weight:  800 lbs.
Weight:  20.2 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1133-3   Price: $1,399

VP-2
(Cable Braced
Stock Gear)

Wheels
Axles
Hardware
VP-2 Cable Braced Landing Gear Gross Weight:  1100 lbs.
Weight:  14.6 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Includes lower leaf plates
Cables not included
P/N 1132-3   Price: $1,049

VP-2
(Free Standing
No Cables)

Wheels
Axles
Hardware
VP-2 Free Satnding Landing Gear Gross Weight:  1100 lbs.
Weight:  24.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1134-3   Price: $1,599

Wag-A-Bond
Wheels
Axles
Hardware
Wag-A-Bond Landing Gear Gross Weight:  1600 lbs.
Weight:  28.5 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1049-3   Price: $1,789

Zenith CH601XL
Tri-Gear

Wheels
Axles
Hardware
Zenith CH601XL Landing Gear Gross Weight:  1320 lbs.
Weight:  32.2 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 1
Optional Gundrill $200.00
P/N 1216-1   Price: $1,799

Zenith CH701
Wheels
Axles
Hardware
Zenith CH701 Landing Gear Gross Weight:  1200 lbs.
Weight:  21.0 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Various
Optional Gundrill $200.00
P/N 1214-3   Price: $1,379

Zenith CH801
Wheels
Axles
Hardware
Zenith CH701 Landing Gear Gross Weight:  2400 lbs.
Weight:  40.3 lbs.
Material: 7075-T6 Aluminum
Axle Bolt Hole Pattern: Type 2
Optional Gundrill $200.00
P/N 1218-3   Price: $1,939
